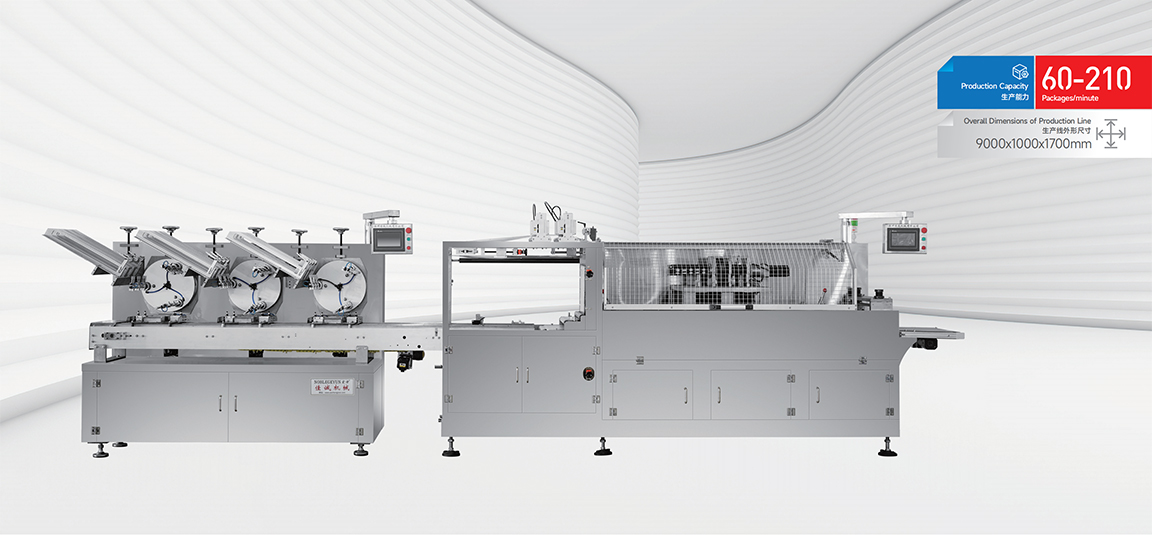

首頁 >> PRODUCT >> Charter warming machine >> WFS-400 Reciprocating Plaster Patch Four Side Seal Packaging MachineWFS-400 Reciprocating Plaster Patch Four Side Seal Packaging Machine
產品介紹
PRODUCT APPLICATIONS
Suitable for medicine, daily chemicals, foodstuffs such as:
Warmer pads, eye pads, plaster patch, medical gauze, etc.
技術參數
| Main Technical Data | |
| WFS-400 Reciprocating Plaster Patch Four Side Seal Packaging Machine | |
| Packaging Scope | L(50 - 280mm)×W(50 - 200mm) |
| Packaging Speed | 20-80pieces/minute(depend by pouch size &material) |
| Production Capacity | 70X3=210包(按1分鐘70次1次3包計算) |
| Filling Dimensions | 在包裝尺寸范圍內按客戶要求設計，最大物料厚度15 mm |
| Width of Packaging Material | 400~820mm |
| Outer Diameter of Material Roll | 420mm(maximum) |
| Core Diameter of Material Roll | φ75mm |
| Compatible Materials | PET/AL/PE;PET/PE;NY/PE;NY/AL/PE;KOPP/PE |
| Power Supply | AC380V 50Hz maximum60A(Customizable according to customer requirements) |
| Compressed Air | 0.4-0.6Mpa |
| Total Power | Around 17Kw |
| Overall Dimensions | 5300×1330×1650mm |
| Gross Weight | Around 2300kg |
