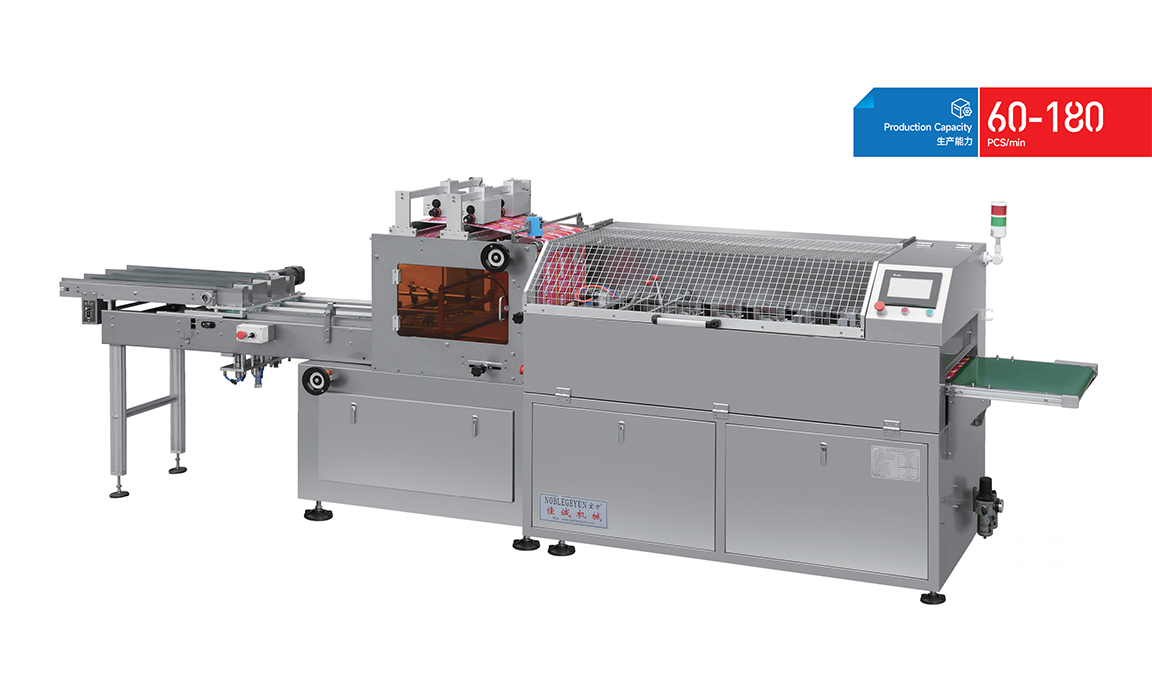

WFS-400 Reciprocating Four Side Seal Packaging Machine
產品介紹
PRODUCT APPLICATIONS
Suitable for medicine, daily chemicals, foodstuffs such as:

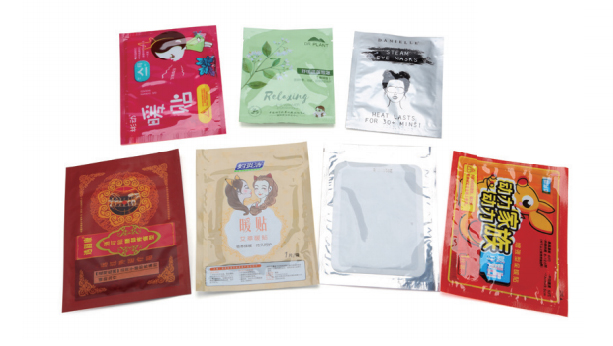

Warm sticker, eye sticker, plaster sticker, medical gauze, etc.
技術參數(shù)
| Main Technical Data | |
| WFS-400 Reciprocating Four Side Seal Packaging Machine | |
| Packaging range | L(50 - 280mm)×W(50 - 200mm) |
| Packaging speed | 20-80pieces/minute(depend by pouch size &material) |
| Production capacity | 70×3=210包(按1分鐘70次1次3包計算) |
| Filling size | 在包裝尺寸范圍內按客戶要求設計，最大物料厚度15 mm |
| Package width | 400~820mm |
| Package outer diameter | 420mm(maximum) |
| Package core diameter | Φ75mm |
| Adaptation of package material | PET/AL/PE;PET/PE;NY/PE;NY/AL/PE;KOPP/PE |
| Power supply | AC380V 50Hz maximum60A(Customizable according to customer requirements) |
| Compressed air | 0.4-0.6Mpa |
| Total power | Around 17Kw |
| Overall Dimension | 5300×1330×1650mm |
| Gross weight | Around 2300kg |
