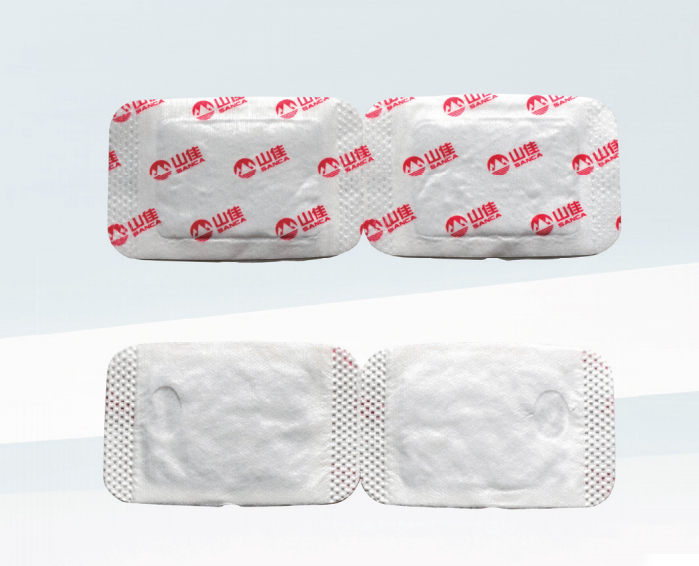

Hand and Foot Pad Production Line
產品介紹
技術參數
| Main Technical Data | |

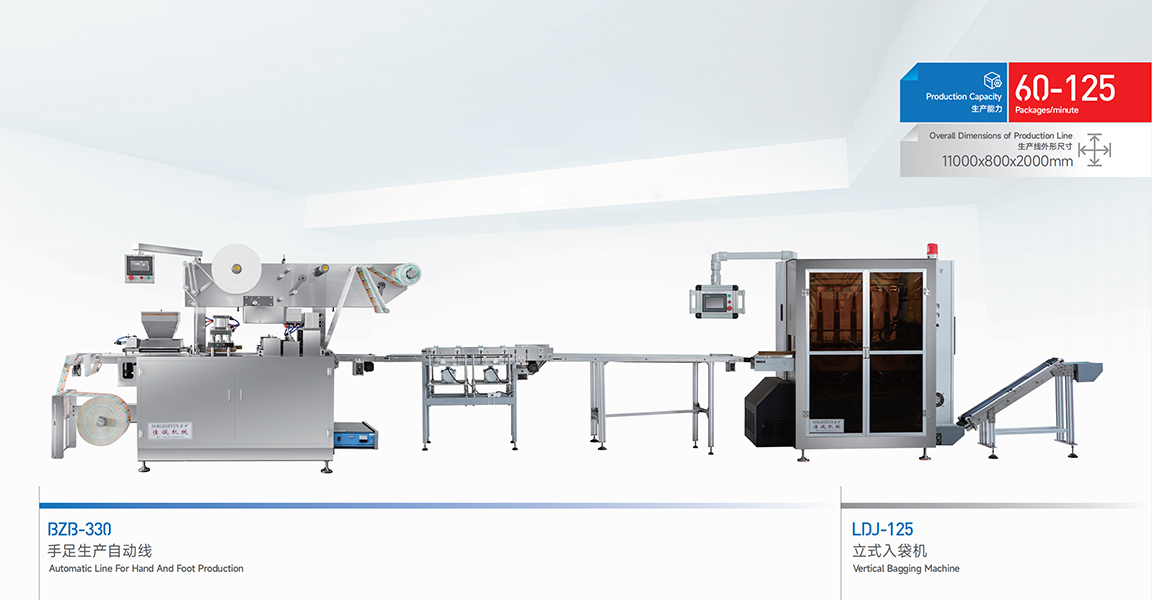

| BZB-330 Automatic Line For Hand And Foot Production | |
| Roll Cutting Times | 15-40pieces/minute |
| Max.Pack Size | 330×270mm |
| Automatic Program | automatic |
| Function | filling,measurement,others |
| Raw Material | non-woven fabric,stickers compound material,cotton |
| Substance | powder |
| Total Power | 約15Kw(380V) |
| Compressed Air(Mpa) | 0.6-0.8Mpa(>0.3m3Self provided) |
| Mold Cooling | 60L/H,tap water or recycle water |
| Overall Dimension | 4450×700×1750mm(L×W×H) |
| Weight | 2500Kg |
| LDJ-125 Vertical Bagging Machine | |
| Production capacitty | 60-125Bag/minute |
| Bag width | 110-120mm |
| Bag Length | 130-145mm |
| Total Power | 6.5Kw(380V 50HZ) |
| Compressed Air(MPa) | 0.6-0.8MPa |
| Dimension | 2100×880×1700mm |
| Weight | 900Kg |
