Automatic Insole Production Line
產品介紹
技術參數
| Main Technical Data | |

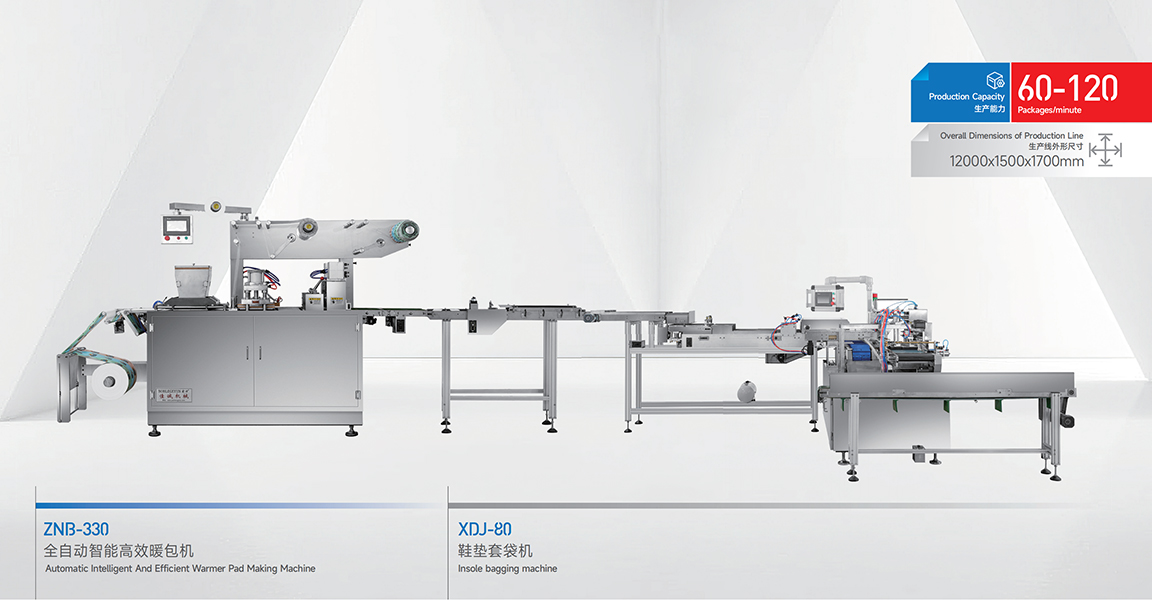

| ZNB-330 Automatic Intelligent And Efficient Warmer Pad Making Machine | |
| Roll Cutting Times | 15-40times/minute |
| Production Capacity | 180pieces/minute(按雙排一出六片每分鐘30次計算) |
| Max.Pack size | 330×270mm |
| Automatic program | automatic |
| Function | filling,measurement,others |
| Raw material | non-woven fabric,stickers compound material |
| Substance | powder |
| Total power | 10.5Kw(380V) |
| Compressed air(Mpa) | 0.6-0.8Mpa(>0.3 m3Self provided) |
| Overall dimension | 2970×700×1890mm(L×W×H) |
| Weight | 1500Kg |
| XDJ-80 Insole bagging machine | |
| Packing speed | 60-120bags/minute |
| Bag Width | 95-110mm |
| Bag Length | 250-300mmm |
| Compressed air(Mpa) | 0.6-0.8Mpa |
| Power voltage | 380 V/50HZ |
| Total power | Around 8.5Kw |
| Overall dimension | 2470×3870×1580mm(L×W×H) |
| Weight | Around 1000kg |
