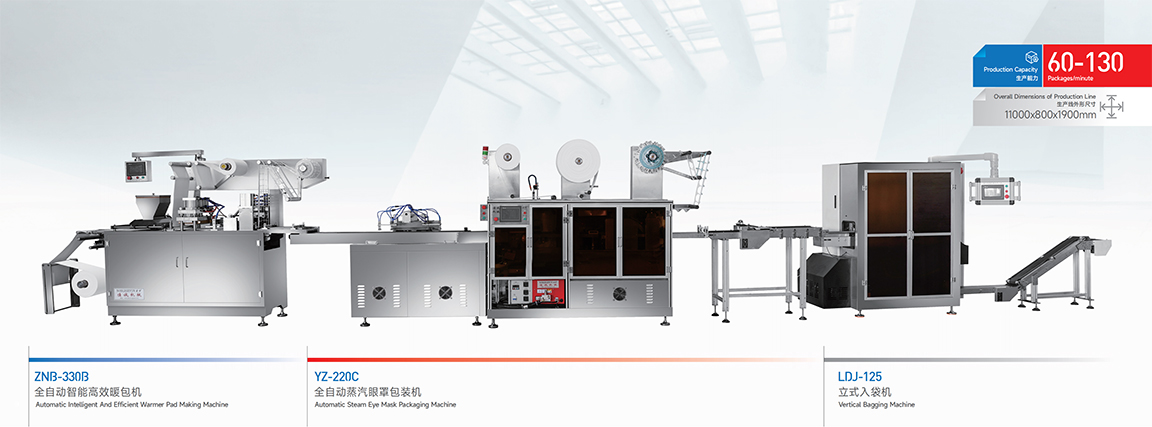

Steam Eye Mask Production Line
產品介紹
PRODUCT APPLICATIONS
Suitable for packaging activated carbon natural heating categories such as:
warmer body pads, foot stickers, foot warmer pads, hand warmer pads, chest warmer pads, eye pads, knee pads, shoulder pads, neck pads, and so on, and other heterogeneous shape packaging.
技術參數

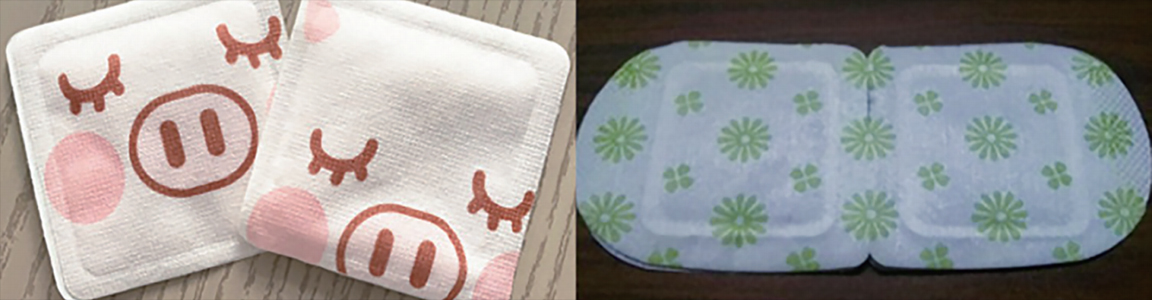

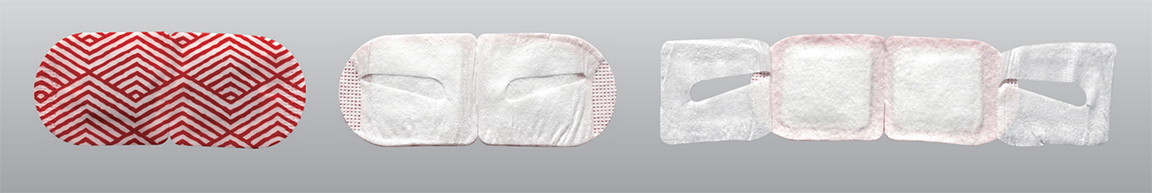

PART OF THE SAMPLE SHOW
| Main Technical Data | |
| ZNB-330B Automatic Intelligent And Efficient Warmer Pad Making Machine | |
| Roll Cutting Times | 15-40pieces/minute |
| Production Capacity | 180pieces/minute(按雙排一出六片每分鐘30次計算) |
| Max.Pack size | 330×270mm |
| Automatic program | automatic |
| Function | ling,measurement,others |
| Raw material | on-woven fabric,stickers compound material |
| Substance | powder |
| Total power | 10.5Kw(380V) |
| Compressed air(Mpa) | 0.6-0.8Mpa(>0.3m3Self provided) |
| Overall dimension | 2970×700×1890mm(L×W×H) |
| Weight | 1500Kg |
| Main Technical Data | |
| YZ-220C Automatic Steam Eye Mask Packaging Machine | |
| Roll Cutting Times | 15-120times/minute |
| Max material Width | 230mm |
| Raw material | non-woven fabric,max diameter 600mm,inner size 75mm |
| Compressed air(Mpa) | 0.4-0.6Mpa |
| Power volage | 380V/220V 50HZ |
| Total power | Around 7Kw |
| Overall dimension | 3850×700×1850mm(L×W×H) |
| Weight | 1200Kg |
| LDJ-125 Vertical Bagging Machine | |
| Production capacitty | 60-130pieces/minute |
| Bag width | 110-120mm |
| Bag Length | 130-145mm |
| Total Power | 6.5Kw(380V 50HZ) |
| Compressed Air(MPa) | 0.6-0.8MPa |
| Dimension | 2100×880×1700mm |
| Weight | 900Kg |
